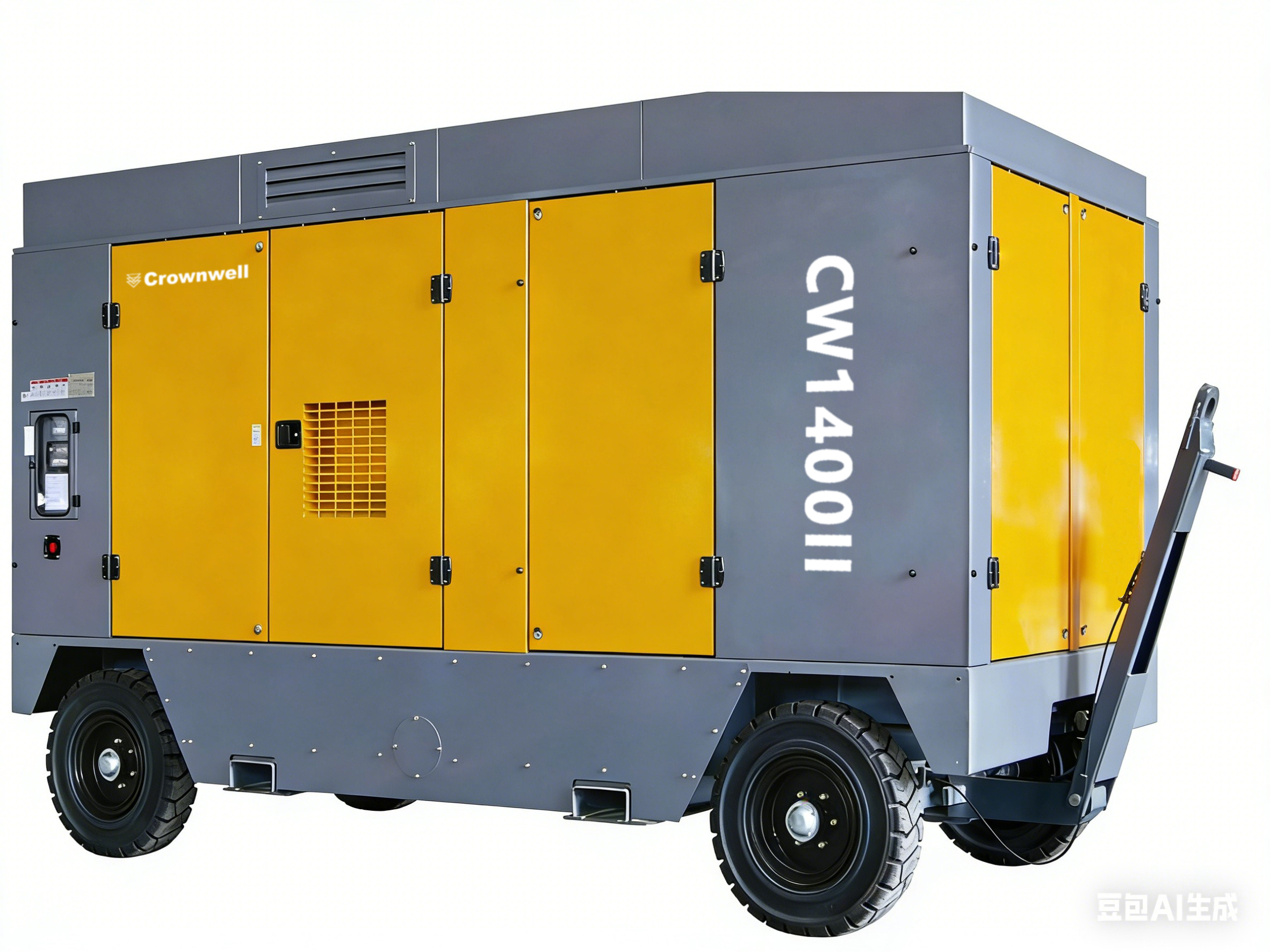

| DIESEL PORTABLE AIR COMPRESSOR CW 1400 II |
| COMPRESSOR MODEL | CW 1400 II |
| Compressed Stage | 2 |
| Free Air Delivery @ Normal Working Pressure | 32.0 / 39.0 m³/min (1130 / 1377 CFM) |
| Normal Working Pressure | 22/34 bar (319/493 psi) |
| Cooling Mode | A/C |
| Drive Mode | Coupling |
| Air outlet Size | 1xG1 ½ ”, 1xG2 ” |
| Diesel Engine Manufacturer | CUMMINS |
| Output at Rated Speed | 410 kW |
| Cylinder | 6 |
| Rotating speed | 1850 rpm |
| Compressor Oil System Capacity | 130 L |
| Oil Air Tank Capacity | 170 L |
| Engine Coolant Capacity | 90 kg |
| Engine Lube Capacity | 35 L |
| Fuel Tank Capacity | 750 L |
| Discharge Temperature | 105℃ |
| Oil Carryover at outlet | £ 5 ppm |
| Noise Level | 85±5 dB(A) |
| Nr. of wheels | 4 |
| Length | 4600 mm |
| Width | 2150 mm |
| Height | 2750 mm |
| Weight | 6600 Kg |
