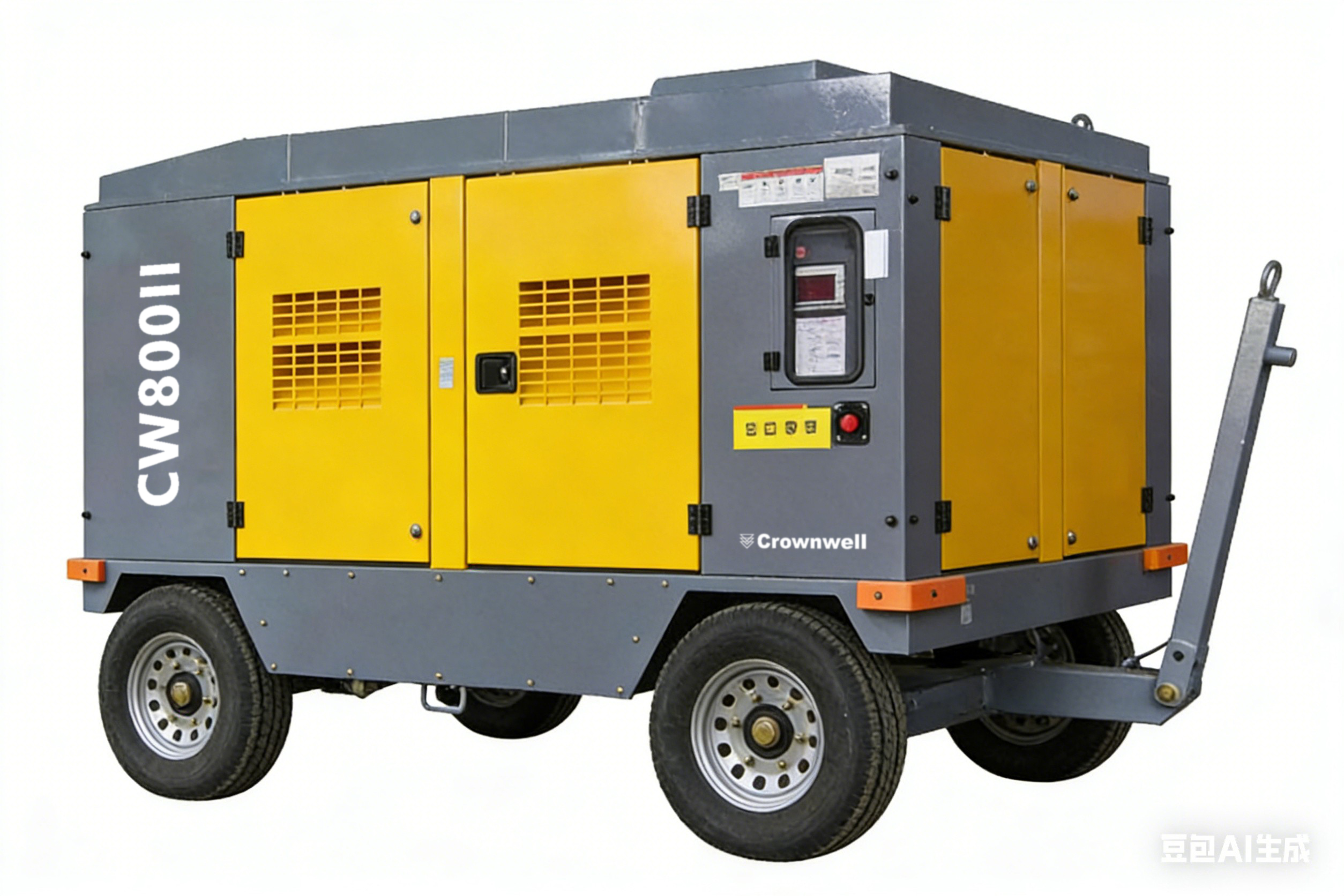

| DIESEL PORTABLE AIR COMPRESSOR CW 800 II |
| COMPRESSOR MODEL | CW 800 II |
| Compressed Stage | 2 |
| Free Air Delivery @ Normal Working Pressure | 20.0 / 22.0 m³/min (706 / 777 CFM) |
| Normal Working Pressure | 22/18 bar (319/261 psi) |
| Cooling Mode | A/C |
| Drive Mode | Coupling |
| Air outlet Size | 1xG1 ½ ”, 1xG2 ” |
| Diesel Engine Manufacturer | CUMMINS |
| Output at Rated Speed | 194 kW |
| Cylinder | 6 |
| Rotating speed | 1700/1900 rpm |
| Compressor Oil System Capacity | 65 L |
| Oil Air Tank Capacity | 100 L |
| Engine Coolant Capacity | 45 kg |
| Engine Lube Capacity | 20 L |
| Fuel Tank Capacity | 350 L |
| Discharge Temperature | 90℃ |
| Oil Carryover at outlet | £ 5 ppm |
| Noise Level | 85±5 dB(A) |
| Nr. of wheels | 4 |
| Length | 3600 mm |
| Width | 1910 mm |
| Height | 2420 mm |
| Weight | 3950 Kg |
